TEH 61&25-G30.P

Hybrid Power Station

PV Access Capacity up to 30 kWp
Battery Capacity 61.44 kWh
Request Quote

Overview

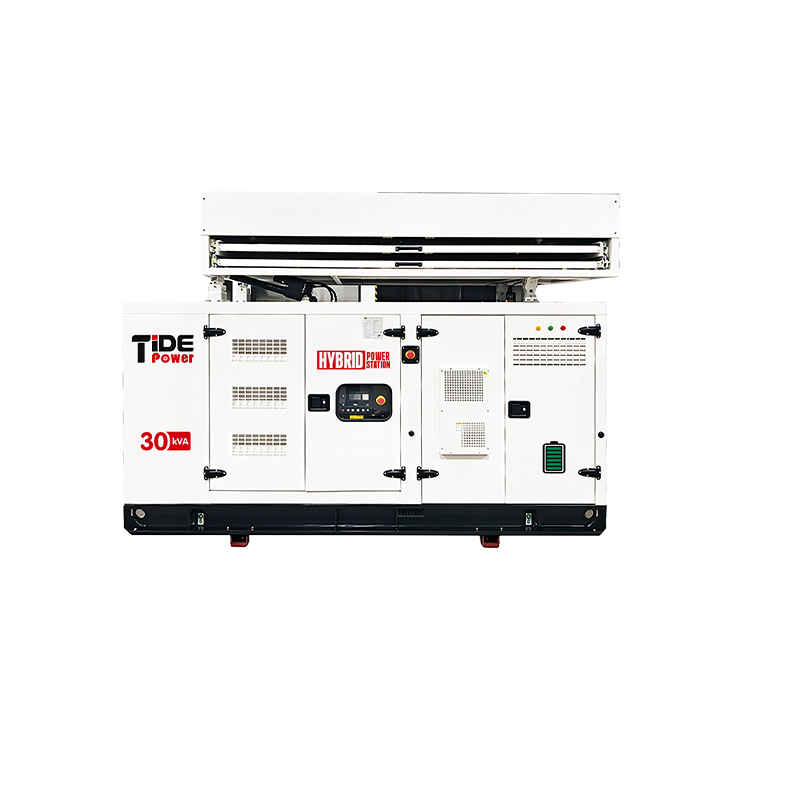

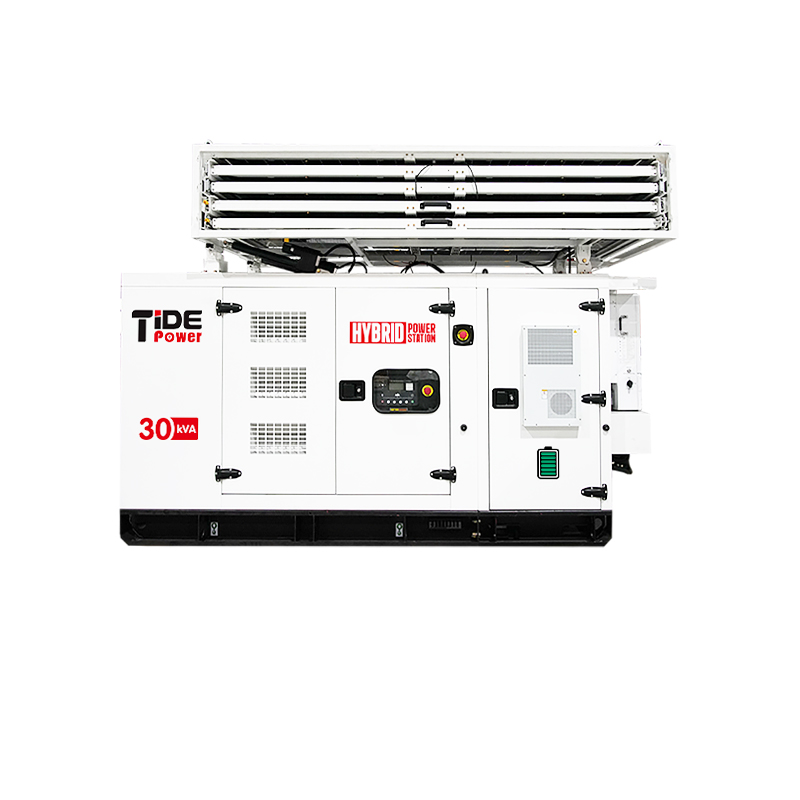

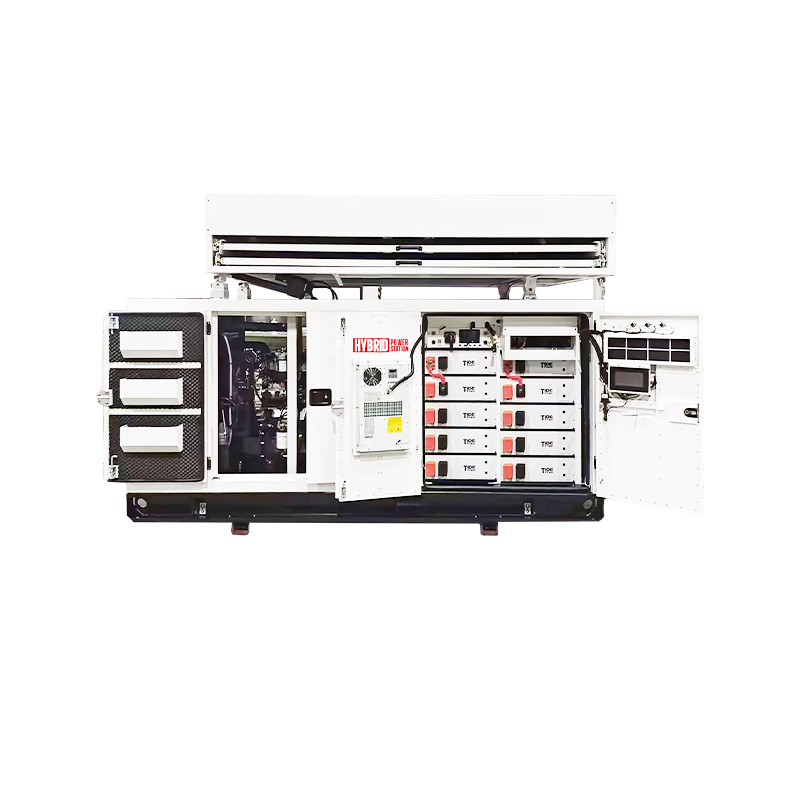

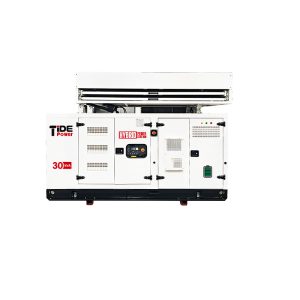

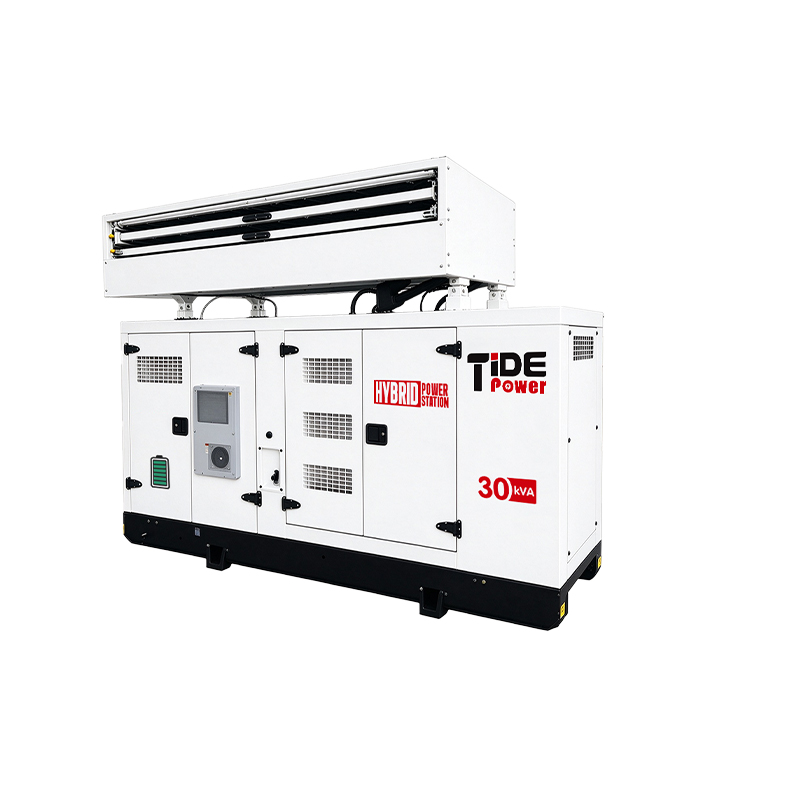

The Tide Power TEH 61/25-G30.P is a compact, DC-coupled solar + diesel + battery storage hybrid power station. In one integrated cabinet, it combines a 25 kW hybrid inverter, a 30 kVA diesel generator, a 61.44 kWh battery, and 3.1 kW pre-installed solar. It delivers stable, low-harmonic power for loads up to 25 kW, automatically prioritizing solar, supplementing with battery, and falling back to diesel—ideal for remote, unattended and mission-critical sites.

Benifits

•
PLUG & PLAY
Pre-installed solar. Simple wiring.
•
SOLAR PRIORITY
Solar takes load first.
•
BATTERY BUFFER
Storage smooths and supplements.
•
DIESEL BACKUP
Auto diesel fallback.
•
GEN-SET FRIENDLY
Fewer starts. Less light-load wear.
•
PRECISION POWER
Stable waveform. Low THDi.
•
SOLAR EXPANSION
Up to 30 kW solar array.
•
UNATTENDED READY
Auto switch & self-protection.

FAQ

What is the TEH 61&25-G30.P?

The TEH 61&25-G30.P is a compact, DC-coupled PV-storage-diesel hybrid power station. It integrates a 25 kW three-phase hybrid inverter, a 30 kVA diesel generator, a 61.44 kWh battery, and 3.1 kW pre-installed PV in one cabinet. It delivers stable, low-harmonic power for loads up to 25 kW, ideal for remote, unattended, and mission-critical sites.

How does the energy management work?

The system follows a priority strategy: Solar First → Battery Buffered → Diesel Backed. It automatically switches between solar, battery, and diesel to maximize clean energy use and minimize diesel run hours.

Can the PV capacity be expanded?

Yes. The system comes with 3.1 kW pre-installed PV and supports PV expansion up to 30 kW array. However, the inverter’s maximum usable PV input power is 25 kW. Expansion is subject to inverter input limit and site conditions.

What protections are included?

The system includes over/under voltage, overcurrent, overload, battery overcharge/overdischarge, diesel high-temperature/oil-pressure protection, and diesel-storage interlock. It also has input reverse polarity protection, PV DC switch, DC/AC surge protection (Type II), and insulation resistance detection.

What are typical applications?

Remote telecom base stations, border outposts, construction site offices, mountain monitoring stations, unattended guard posts, emergency backup, off-grid microgrids, and precision communication/control loads.
